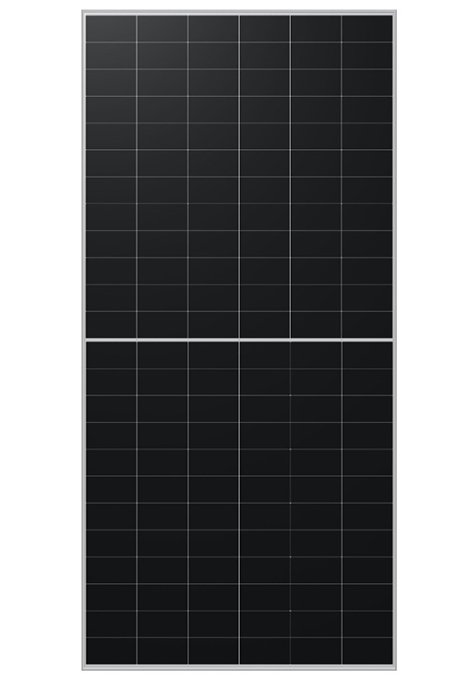

LONGi Himo X10 Monofacial 640-670w LR7-72HVHF Solar Panel

  • Bifacial, BC, N-type
  • 24.8%
  • 640-670Wp
  • 28.5 kg

▶ instructus cellula HPBC 2.0, summus efficientiae gene . hereditat

Unicum corporis consilium efficaciter pulveris cumulus ictum minuit et generationis potentiam meliorem per totam vitam cycli adquirit

Maximum firmitatem, operationem stabilem sub conditionibus premiis

▶ Aptior ad tectorum tegulae industrialis et commercialis color ferrarius et parvae anguli institutionis missionum

Pete Quotationem

PRIOR: Nullum productum prius
PROXIMUS: Nullum productum proximum
  • Technology Bifacial, TOPCon, N-type
  • Potestas Range 640-670Wp
  • Pondus 28.5 kg
  • Product Warranty 15 Years

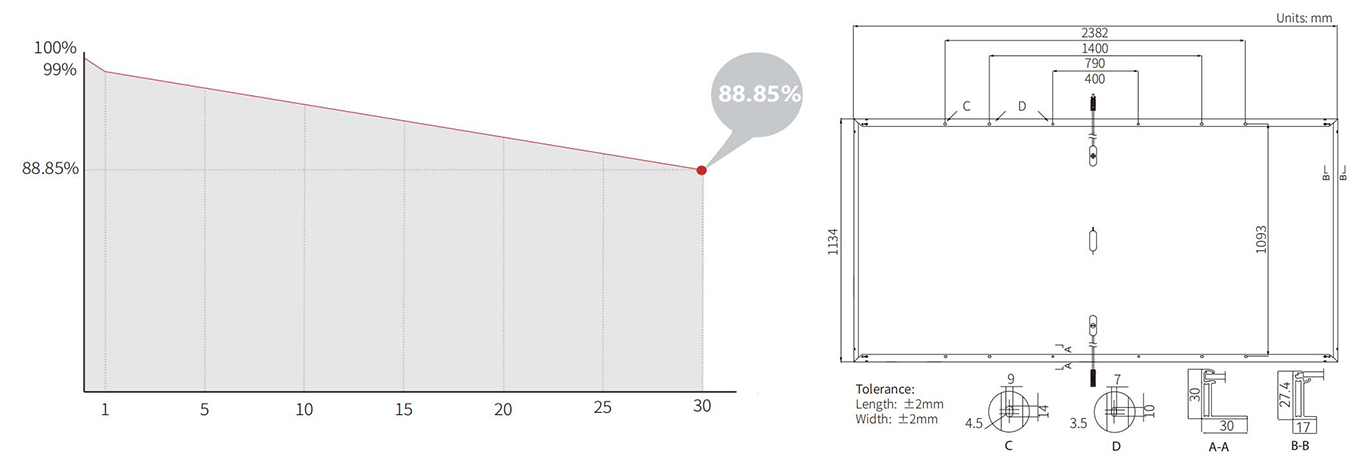

  • Potestas Warranty 1 Annus 99 %, 30 Annus 88.9%
  • Panel Efficiency 24.8%
  • Dimension 2382×1134×30 mm
  • Cellula Number 144

  • HPBC 2.0-contactus cellae technologiae

  • Innovative anti-pulveris frame consilium minuere potestatem damnum pulveris cumulus

  • Improved life navitas cede pro low-benificium officinae

  • Apta tecta commercialibus, aedificiis industrialibus et plantis solaris . distributis
LONGi Himo X10 Monofacial 640-670w LR7-72HVHF Solar Panel

Additional Value
XXX-Year Power Warranty

Mechanica Parametri

Cell Orientation 144 (6-24)
Adiunctae Box IP68, tres diodes
Output cable

4mm², 400, -200mm/±1400mm

Longitudo potest nativus

vitrum Speculum unicum, 3.2mm vitrum temperatum
Artus Anodized aluminium offensionis artus
Pondus 28.5kg
Dimension 2382×1134×30mm
Packaging 35pcs per grabatum
140pcs per 20'GP / 700pcs per 40'HC

E lectrical Characteres
STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20°C 1m/s Test dubitatio pro Pmax: ±3%

OMNIBUS Type LR7-72HVHF-640M LR7-72HVHF-645M LR7-72HVHF-650M LR7-72HVHF-655M LR7-72HVHF-660M LR7-72HVHF-665M LR7-72HVHF-670M
Temptans Condition STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum imperium (Pmax/W) 640 487 645 491 650 495 655 499 660 502 665 506 670 510
Apertum Circuitum Voltage (Voc/V) 53.7 51.04 53.8 51.13 53.9 51.23 54 51.32 54.1 51.42 54.2 51.51 54.3 51.61
Brevis Circuit Current (Isc / A) 15.13 12.15 15.21 12.22 15.29 12.28 15.37 12.34 15.45 12.41 15.52 12.47 15.6 12.53
Maximam vim intentionis ad (Vmp/V) 44.36 42.15 44.46 42.25 44.56 42.35 44.66 42.44 44.76 42.54 44.86 42.63 44.96 42.73
Current apud Maximum Power (Imp/A) 14.43 11.56 14.51 11.63 14.59 11.69 14.67 11.76 14.75 11.82 14.83 11.88 14.91 11.94
OMNIBUS Efficiency(%) 23.7 23.9 24.1 24.2 24.4 24.6 24.8

Operating Morbi
Temperature operational -40℃ ~ 85℃
Virtus output tolerantia 0~3%
Maxime Ratio intentione DC1500V (IEC)
Maximum Series Fuse Rating 25A
Nominal Operating Cell Temperature 45±2℃
Praesidium Classis Classis II
Ignis Rating IEC Class C

Mechanica Loading
Ante latus Maximum Static Loading 5400Pa
Post maximum Static Loading 2400Pa
Grando Test 25mm Hailstone ad celeritatem 23m / s *

Temperature Ratings (STC)
Temperature Coefficiens of Isc 0.005%/°C
Temperatura Coefficiens Vocis -0.200%/°C
Temperature Coefficiens Pmax -0.260%/°C
