Home / Products / Solaris Panel / Weran Solar Panel / WERAN 640-670W Back Contact Solar Panel - OEM High-Efficiency Single-Glass PV Module for Distribution and Commercial Projects

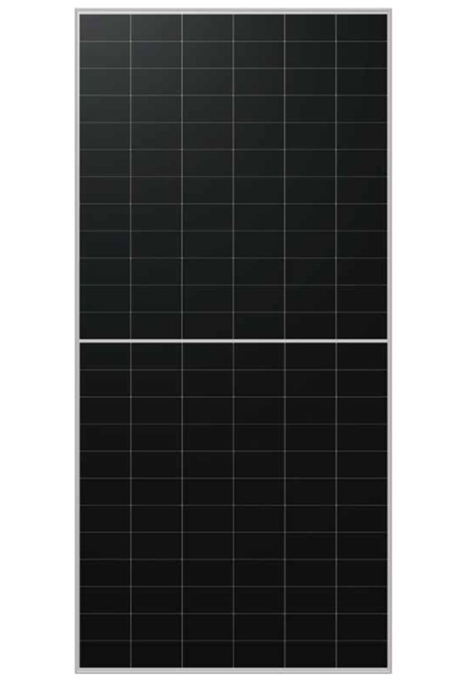

WERAN 640-670W Back Contact Solar Panel - OEM High-Efficiency Single-Glass PV Module for Distribution and Commercial Projects

  • Monofacial, Contactus Back, N-type
  • Usque ad 24.8%
  • 640-670 Wp
  • 28.5 kg

Summus-efficientia unius vitrei dorsi contactum moduli ad tectorum commercii et industriae

HPBC 2.0 cellula technicae artis output liberat princeps potentia et minus operating temperatus

▶ Leve 28.5 kg consilium aptum est ad tectorum tegularum colorum ferro et inceptis solaris distribuendis

Nulla ante gridlines meliorem moduli aestheticam et solis effusio

Reliable diu-terminus perficientur sub tecto institutionem postulantes condiciones

Pete Quotationem

PRIOR: WERAN 595-625W Large-Forma bifacialis Solaris Panel - OEM Geminus-Glass PV Modulus ad utilitatem, EPC et Projecta Tutus
PROXIMUS: WERAN 495-510W Residential Back Contact Solar Panel - OEM Geminus-Glass Rooftop PV Module pro Distributoribus et Installers
  • Technology Monofacial, Contactus Back, HPBC 2.0, N-type
  • Potestas Range 640-670 Wp
  • Pondus 28.5 kg
  • Product Warranty 15 Years
  • Potestas Warranty 1 Annus 99 %, 30 Annus 88,85 %
  • Panel Efficiency 23.7%-24.8%
  • Dimension 2382×1134×30 mm
  • Cellula Number 144

  • HPBC 2.0-contactus cellae technologiae

  • Ad 670 W princeps potentia output pro C&I culmine systemata

  • Ad 24.8% moduli efficientiam pro altiori industria densitatis

  • Una structura vitri moduli inferioris ponderis

  • Nulla fronte gridlines ad premium visualis speciei et melioris lucis effusio

  • Inferius operating temperatus sub culmine reali-mundi conditionibus

  • Apta tecta commercialibus, aedificiis industrialibus et plantis solaris distributis

  • XV annos productum warantum et XXX-annus linearis potentia warantum
WERAN 640-670W Back Contact Solar Panel - OEM High-Efficiency Single-Glass PV Module for Distribution and Commercial Projects

Additional Value

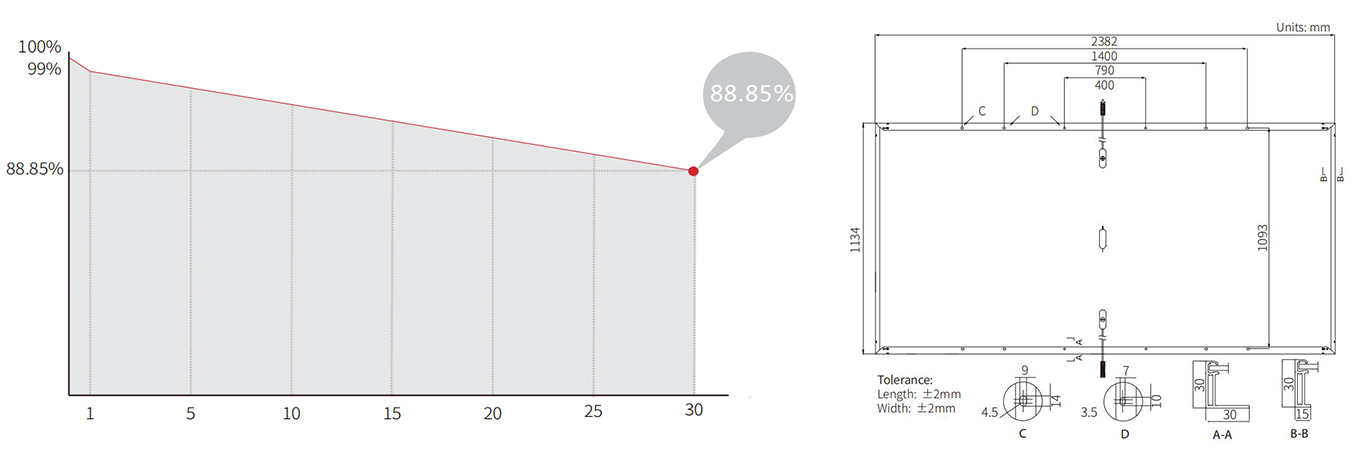

XXX-Year Power Warranty

Mechanica Parametri

Cell Orientation 144 (6-24)
Adiunctae Box IP68, tres diodes
Output cable

4mm², 400, -200mm/±1400mm

Longitudo potest nativus

vitrum Vitrum unicum, 3.2mm vitrum temperatum cotetum
Artus Anodized aluminium offensionis artus
Pondus 28.5kg
Dimension 2382×1134×30mm
Packaging 36pcs per grabatum
144pcs per 20'GP / 720pcs per 40'HC

E lectrical Characteres
STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20°C 1m/s Test dubitatio pro Pmax: ±3%

OMNIBUS Type LR7-72HVH-640M LR7-72HVH-645M LR7-72HVH-650M LR7-72HVH-655M LR7-72HVH-660M LR7-72HVH-665M LR7-72HVH-670M
Temptans Condition STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum imperium (Pmax/W) 640 487 645 491 650 495 655 499 660 502 665 506 670 510
Apertum Circuitum Voltage (Voc/V) 53.7 51.04 53.8 51.13 53.9 51.23 54 51.32 54.1 51.42 54.2 51.51 54.3 51.61
Brevis Circuit Current (Isc / A) 15.13 12.15 15.21 12.22 15.29 12.28 15.37 12.34 15.45 12.41 15.52 12.47 15.6 12.53
Maximam vim intentionis ad (Vmp/V) 44.36 42.15 44.46 42.25 44.56 42.35 44.66 42.44 44.76 42.54 44.86 42.63 44.96 42.73
Current apud Maximum Power (Imp/A) 14.43 11.56 14.51 11.63 14.59 11.69 14.67 11.76 14.75 11.82 14.83 11.88 14.91 11.94
OMNIBUS Efficiency(%) 23.7 23.9 24.1 24.2 24.4 24.6 24.8

Operating Morbi
Temperature operational -40℃ ~ 85℃
Virtus output tolerantia 0~3%
Maxime Ratio intentione DC1500V (IEC)
Maximum Series Fuse Rating 25A
Nominal Operating Cell Temperature 45±2℃
Praesidium Classis Classis II
Ignis Rating IEC Class C

Mechanica Loading
Ante latus Maximum Static Loading 5400Pa
Post maximum Static Loading 2400Pa
Grando Test 25mm Hailstone ad celeritatem 23m / s *

Temperature Ratings (STC)
Temperature Coefficiens of Isc 0.005%/°C
Temperatura Coefficiens Vocis -0.200%/°C
Temperature Coefficiens Pmax -0.260%/°C
