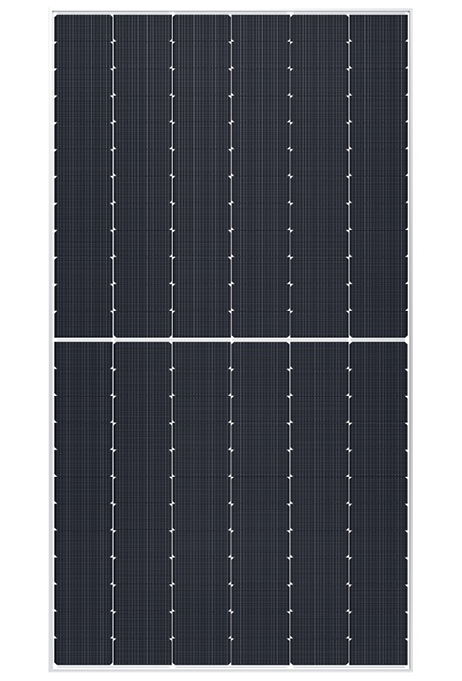

LONGi Hi-MO7 Bifacial 615-645w LR5-78HGD Solar Panel

  • Bifacial, TOPCon, N-type
  • 23.1 %
  • 615-645Wp
  • 35.1 kg

▶ Accommoda pro Distributa Projects.

▶ HPDC cellula technicae artis progressus auget efficientiam moduli et potentiam output.

▶ Maximum bifacialitas et excellentia potentia temperatura coefficientem libera significant industria cedere quaestus.

▶ Vexilla vitae LONGi signa valent diuturnam industriam perficiendi constantem.

Pete Quotationem

PRIOR: Nullum productum prius
PROXIMUS: Nullum productum proximum
  • Technology Bifacial, TOPCon, N-type
  • Potestas Range 615-645 Wp
  • Pondus 35.1 kg
  • Product Warranty 12 Years
  • Potestas Warranty 1 Annus 99 %, 30 Annus 87,4 %
  • Panel Efficiency 23.1%
  • Dimension 2382×1134×30 mm
  • Cellula Number 156

  • HPDC (TOPCon) technologiae cellulae provectae ad auctam energiam generationis

  • Altus bifaciality qua etiam tergo potentia quaestum

  • Optimized temperatus coefficiens ad melius calidum caeli perficientur

  • Dual-glas compages ad auctam fidem et diuturnam servitutem

  • XII annos productum warantum et XXX-annus linearis potentia warantum
LONGi Hi-MO7 Bifacial 615-645w LR5-78HGD Solar Panel

Additional Value
XXX-Year Power Warranty

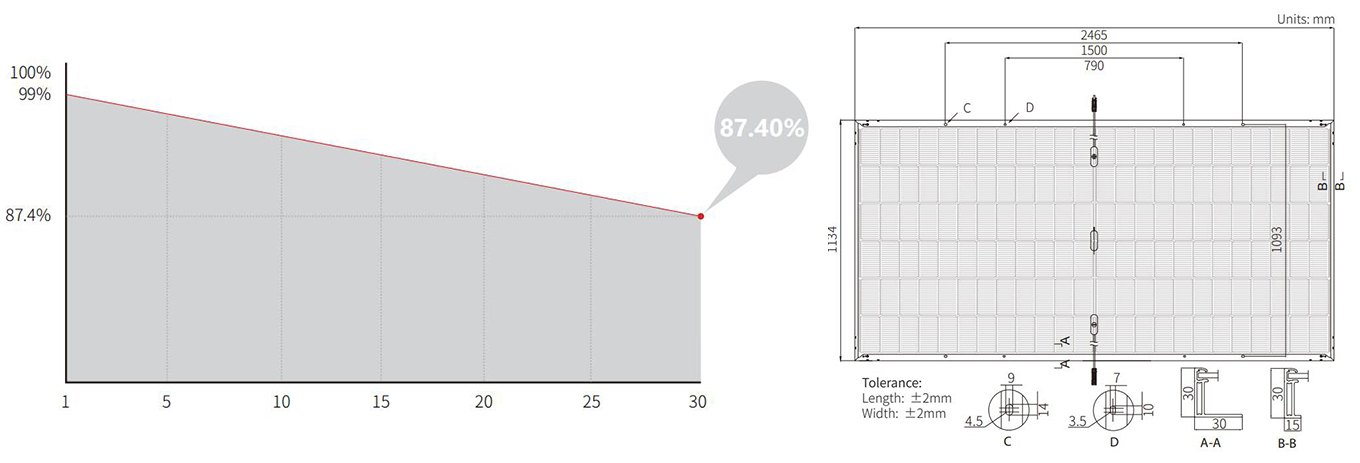

Mechanica Parametri

Cell Orientation 156 (6×26).
Adiunctae Box

IP68, tres diodes

Output cable

4mm², 400, -200mm/±1400mm

Longitudo potest nativus

vitrum vitrum duale, 2.0mm vitri caloris confirmati
Artus Anodized aluminium offensionis artus
Pondus 35.1kg
Dimension 2465×1134×30mm
Packaging 36pcs per grabatum
144pcs per 20'GP / 576pcs per 40'HC

E lectrical Characteres

STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20°C 1m/s Test dubitatio pro Pmax: ±3%
OMNIBUS Type LR5-78HGD-615M LR5-78HGD-620M LR5-78HGD-625M LR5-78HGD-630M LR5-78HGD-635M LR5-78HGD-640M LR5-78HGD-645M
Temptans Condition STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum imperium (Pmax/W) 615 468.2 620 472 625 475.8 630 479.6 635 483.4 640 487.2 645 491
Apertum Circuitum Voltage (Voc/V) 56.75 53.93 56.91 54.08 57.07 54.24 57.23 54.39 57.39 54.54 57.55 54.69 57.71 54.84
Brevis Circuit Current (Isc / A) 13.73 11.03 13.79 11.08 13.85 11.13 13.91 11.18 13.97 11.22 14.02 11.26 14.09 11.32
Maximam vim intentionis ad (Vmp/V) 47.5 45.15 47.66 45.3 47.82 45.45 47.99 45.61 48.15 45.76 48.31 45.92 48.47 46.07
Current apud Maximum Power (Imp/A) 12.95 10.37 13.01 10.42 13.07 10.47 13.13 10.52 13.19 10.57 13.25 10.61 13.31 10.66
OMNIBUS Efficiency(%) 22 22.2 22.4 22.5 22.7 22.9 23.1

Electricae notae cum diversis agminis parte potentiae quaestum (respectu 625W ante)
Pmax /W Voc/V Isc /A Vmp/V Imp/A Pmax quaestum
656 57.07 14.55 47.82 13.72 5%
688 57.07 15.24 47.82 14.38 10%
719 57.17 15.93 47.92 15.03 15%
750 57.17 16.62 47.92 15.68 20%
781 57.17 17.32 47.92 16.34 25%

Operating Morbi
Temperature operational -40℃ ~ 85℃
Virtus output tolerantia 0~3%
Maxime Ratio intentione DC1500V (IEC/UL)
Maximum Series Fuse Rating 30A
Nominal Operating Cell Temperature 45±2℃
Praesidium Classis Classis II
Bifaciality 80±5%
Ignis Rating UL genus 29
IEC Class C

Mechanica Loading
Ante latus Maximum Static Loading 5400Pa
Post maximum Static Loading 2400Pa
Grando Test 25mm Hailstone ad celeritatem 23m / s *

Temperature Ratings (STC)
Temperature Coefficiens of Isc 0.041%/°C
Temperatura Coefficiens Vocis -0.230%/°C
Temperature Coefficiens Pmax -0.280%/°C
