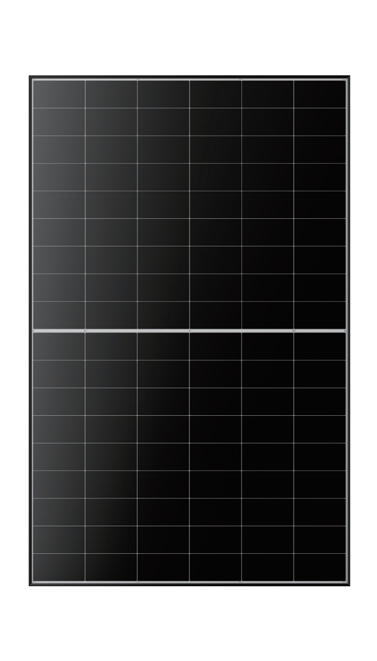

WERAN 495-510W Residential Back Contact Solar Panel - OEM Geminus-Glass Rooftop PV Module pro Distributoribus et Installers

  • Bifacial, HBC Back Contact, N-type
  • Usque ad 25.0%
  • 495-510 Wp
  • 23.5 kg

▶ Premium bifacialis duplex vitreus modulus summus designatus ad summum finem tectorum solarium residentialium

▶ HBC cellam technologiam tergum-contactus ad 25.0% moduli efficientiam tradit

▶ Foedus 1800×1134 mm forma plus virtutis praebet ex spatio tecto limitato

Consectetur anti-obumbrationis et localized-overheating praesidio improves ratio salutem

Dual-vitrei structuram et butyl Flexilis signavit subsidium iam moduli vita

Pete Quotationem

PRIOR: WERAN 640-670W Back Contact Solar Panel - OEM High-Efficiency Single-Glass PV Module for Distribution and Commercial Projects
PROXIMUS: WERAN EcoLife 480-490W Dual Glass BC Solar Panel LR7-54HJD High-Fin Residential PV Module
  • Technology Bifacial, HBC Back Contact, N-type
  • Potestas Range 495-510 Wp
  • Pondus 23.5 kg
  • Product Warranty XXX Years

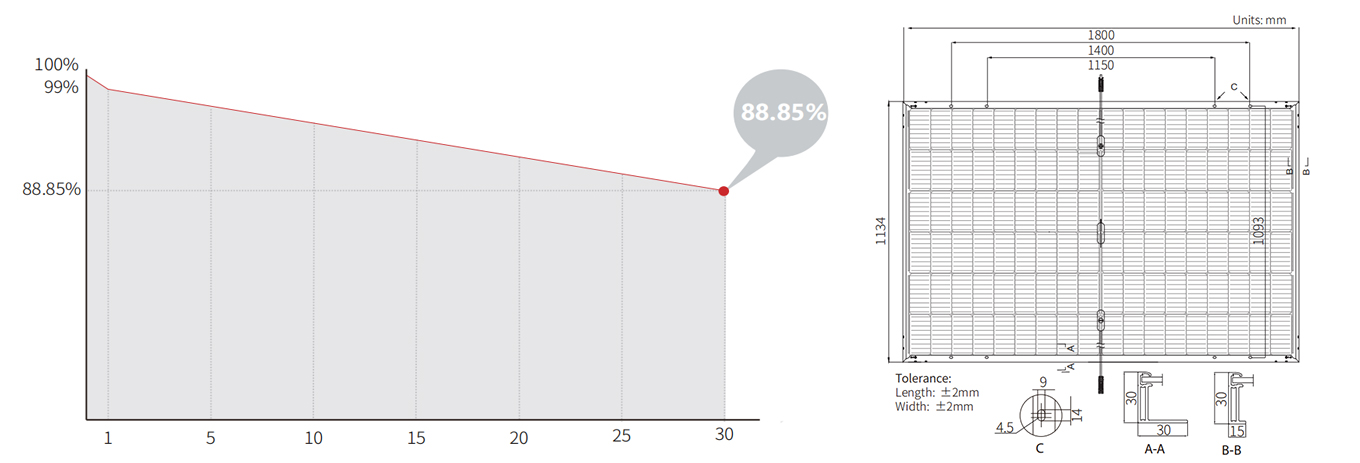

  • Potestas Warranty 1 Annus 99 %, 30 Annus 88,85 %
  • Panel Efficiency 24.3%-25.0%
  • Dimension 1800×1134×30 mm
  • Cell Orientation 108 (6×18)

  • HBC tergum-contactus technologiae cellularum ad premium applicationes solares residentiales

  • Usque ad 25.0% moduli efficientiam plus virtutis ex limitata tecto spatio

  • Dual-vitrei bifacial consilium addito agmine industria parte quaestum

  • Nulla fronte gridlines pro mundis et elegantibus tectorum specie

  • Consectetur anti-obumbrationis et locales-overheating praesidium

  • 6000Pa ante-parte et 3600Pa tergo-parte mechanica onus resistentia

  • Butyl Flexilis signare ad meliorem aquam resistentiam et longioris vitae moduli

  • XXX annos productum warantum et XXX-annus linearis potentia warantum
WERAN 495-510W Residential Back Contact Solar Panel - OEM Geminus-Glass Rooftop PV Module pro Distributoribus et Installers

Additional Value
XXX-Year Power Warranty

Mechanica Parametri

Cell Orientation 108 (6×18).
Adiunctae Box IP68
Output cable

4mm², 400, -200mm/±1200mm

Longitudo potest nativus

vitrum

Duplex speculum

2.0mm vitrum semi-temperatum 1.6mm vitrum semi temperatum

Artus Aluminium anodized nigrum artubus
Pondus 23.5kg
Dimension 1800×1134×30mm
Packaging 36pcs per pallet / 216pcs per 20'GP / 864pcs per 40'HC

E lectrical Characteres
STC: AM1.5 1000W/m² 25°C Test dubitationem pro Pmax: ±3%

OMNIBUS Type

LR7-54HJD-495M

LR7-54HJD-500M

LR7-54HJD-505M

LR7-54HJD-510M

Temptans Condition STC STC STC STC
Maximum imperium (Pmax/W) 495 500 505 510
Apertum Circuitum Voltage (Voc/V) 41.25 41.35 41.45 41.55
Brevis Circuit Current (Isc / A) 15.19 15.30 15.41 15.52
Maximam vim intentionis ad (Vmp/V) 34.07 34.17 34.27 34.37
Current apud Maximum Power (Imp/A) 14.53 14.63 14.74 14.84
OMNIBUS Efficiency(%) 24.3 24.5 24.7 25.0


Electricae notae cum diversa parte posterioris virtutis quaestum (respicitur ad frontem 505W)
Pmax / W Voc / V Isc / A Vmp / V Imp / A Pmax quaestum
530 41.45 16.18 34.27 15.47 5%
556 41.45 16.95 34.27 16.21 10%
581 41.55 17.72 34.37 16.9 15%
606 41.55 18.49 34.37 17.63 20%
631 41.55 19.26 34.37 18.37 25%


Operating Morbi
Temperature operational -40℃ ~ 85℃
Virtus output tolerantia 0~3%
Maxime Ratio intentione DC1500V (IEC)
Maximum Series Fuse Rating 30A
Nominal Operating Cell Temperature 45±2℃
Praesidium Classis Classis II
Ignis Rating IEC Class C

Mechanica Loading
Ante latus Maximum Static Loading 6000Pa
Post maximum Static Loading 3600Pa
Grando Test 25mm Hailstone ad celeritatem 23m / s *

Temperature Ratings (STC)
Temperature Coefficiens of Isc 0.005%/°C
Temperatura Coefficiens Vocis -0.210%/°C
Temperature Coefficiens Pmax -0.240%/°C
