WERAN EcoLife 480-490W Dual Glass BC Solar Panel LR7-54HJD High-Fin Residential PV Module

  • Dual Glass, BC/HIBC
  • 24.0%
  • 480-490Wp
  • 23.5 kg
  • Summus finem Residential Rooftop

Prima optio pro summo fine residentialibus inceptis solaris cum premium patulis specie

▶ Exclusive HIBC contactus technologiae posterioris generationis in omnibus missionibus maiorem vim tradit

Optimized anti-obumbrationis consilio adiuvat ne locales overheating et meliorem salutem

Consectetur 6000Pa / 3600Pa mechanica onus pro vehementiori venti et nivis resistentia

▶ XXX-annus productum warantum et XXX-annus linearis potentia warantum ad longum tempus culminis valorem

Pete Quotationem

PRIOR: WERAN 495-510W Residential Back Contact Solar Panel - OEM Geminus-Glass Rooftop PV Module pro Distributoribus et Installers
PROXIMUS: Nullum productum proximum
  • Technology Dual Glass, BC/HIBC
  • Potestas Range 480-490Wp
  • Pondus 23.5 kg
  • Product Warranty XXX Years
  • Potestas Warranty XXX Years of 88.85 %
  • Panel Efficiency 24.0%
  • Dimension 1800×1134×30 mm
  • Cellula Number 108

  • Dual vitreum BC / HIBC technologiae

  • Summus terminus amet solaris residentialibus

  • 24.0% maximus moduli efficientiam

  • Consectetur 6000Pa / 3600Pa mechanica onus

  • XXX annos productum et potestatem warantum
WERAN EcoLife 480-490W Dual Glass BC Solar Panel LR7-54HJD High-Fin Residential PV Module

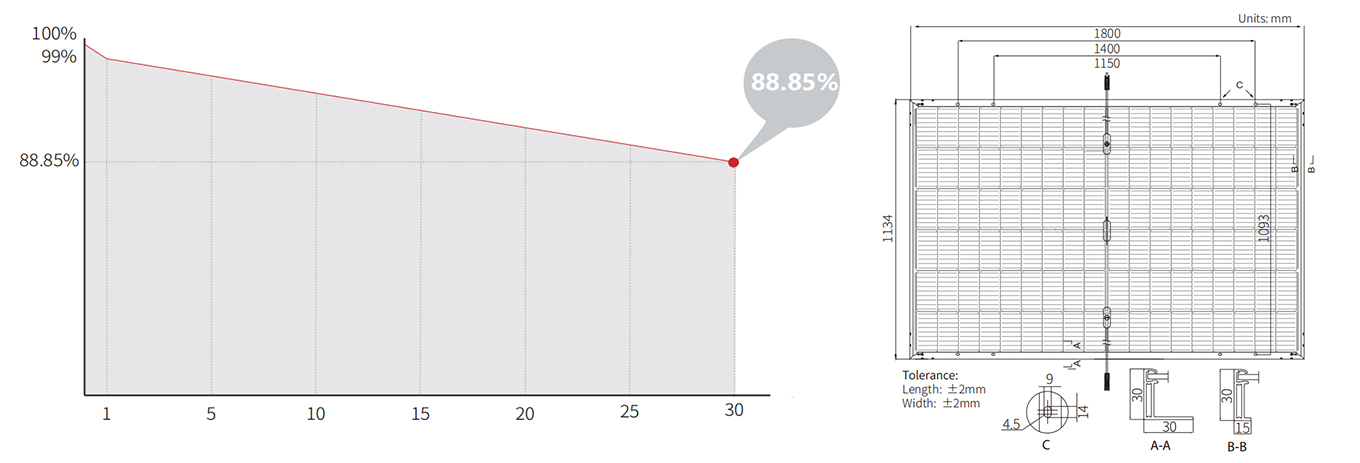

Additional Value
XXX-Year Power Warranty

Mechanica Parametri

Cell Orientation 108 (6×18).
Adiunctae Box IP68
Output cable

4mm², 400, -200mm/±1200mm

Longitudo potest nativus

vitrum

Duplex speculum

2.0mm vitrum semi-temperatum 1.6mm vitrum semi temperatum

Artus Aluminium anodized nigrum artubus
Pondus 23.5kg
Dimension 1800×1134×30mm
Packaging 36pcs per pallet / 216pcs per 20'GP / 864pcs per 40'HC

E lectrical Characteres
STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20℃ 1m/s Expertus incertus pro Pmax: ±3%

OMNIBUS Type

LR7-54HJD-480M LR7-54HJD-485M LR7-54HJD-490M

Temptans Condition

STC NOCT STC NOCT STC NOCT
Maximum imperium (Pmax/W) 480 365 485 369 490 373
Apertum Circuitum Voltage (Voc/V) 40.95 38.92 41.05 39.02 41.15 39.11
Brevis Circuit Current (Isc / A) 14.86 11.93 14.97 12.02 15.08 12.11
Maximam vim intentionis ad (Vmp/V) 33.77 32.09 33.87 32.18 33.97 32.28
Current apud Maximum Power (Imp/A) 14.21 11.39 14.32 11.47 14.42 11.56
Module Efficens (%) 23.5 23.8 24


Electricae notae cum diversa parte posterioris virtutis quaestum (respicitur ad frontem 505W)
Pmax / W Voc / V Isc / A Vmp / V Imp / A Pmax quaestum
530 41.45 16.18 34.27 15.47 5%
556 41.45 16.95 34.27 16.21 10%
581 41.55 17.72 34.37 16.9 15%
606 41.55 18.49 34.37 17.63 20%
631 41.55 19.26 34.37 18.37 25%


Operating Morbi
Temperature operational -40℃ ~ 85℃
Virtus output tolerantia 0~3%
Maxime Ratio intentione DC1500V (IEC)
Maximum Series Fuse Rating 30A
Nominal Operating Cell Temperature 45±2℃
Praesidium Classis Classis II
Ignis Rating IEC Class C

Mechanica Loading
Ante latus Maximum Static Loading 6000Pa
Post maximum Static Loading 3600Pa
Grando Test 25mm Hailstone ad celeritatem 23m / s *

Temperature Ratings (STC)
Temperature Coefficiens of Isc 0.005%/°C
Temperatura Coefficiens Vocis -0.210%/°C
Temperature Coefficiens Pmax -0.240%/°C
