Home / Products / Solaris Panel / Weran Solar Panel / WERAN 595-625W Large-Forma bifacialis Solaris Panel - OEM Geminus-Glass PV Modulus ad utilitatem, EPC et Projecta Tutus

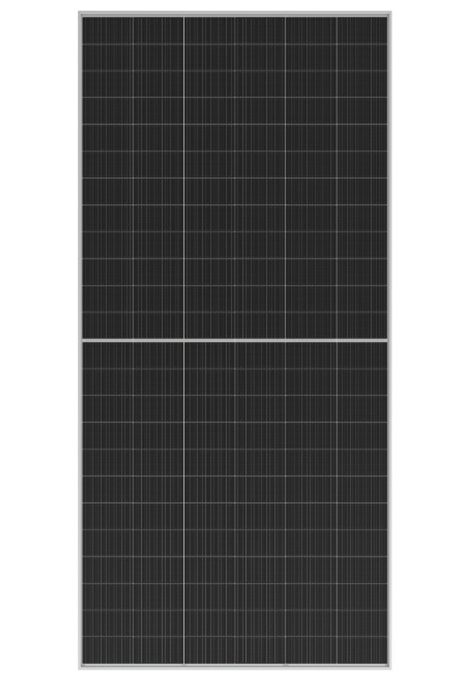

WERAN 595-625W Large-Forma bifacialis Solaris Panel - OEM Geminus-Glass PV Modulus ad utilitatem, EPC et Projecta Tutus

  • Bifacial, TOPCon, N-type
  • Usque ad 23.1%
  • 595-625 Wp
  • 32.5 kg

Summus effectus bifacialis PV modulus ad utilitatem-scalarum potentiae solaris plantarum

▶ Provectus HPDC N-type TOPCon cellula technicae moduli efficientiam et potentiam output meliorem facit

Maximum bifacialitas et optimum temperatum coefficientis subsidium altior vita navitas cedit

Dual-vitreum structuram auget diuturnitatem et firmitatem in velit ambitibus

Pete Quotationem

PRIOR: WERAN 640-670W HPBC 2.0 Bifacial Solar Panel - OEM Back Contact Duplex Speculum PV Module ad utilitatem et EPC Projects
PROXIMUS: WERAN 640-670W Back Contact Solar Panel - OEM High-Efficiency Single-Glass PV Module for Distribution and Commercial Projects
  • Technology Bifacial, TOPCon, N-type
  • Potestas Range 595-625Wp
  • Pondus 32.5 kg
  • Product Warranty XII annos
  • Potestas Warranty 1 Annus 99 %, 30 Annus 87,4 %
  • Panel Efficiency Usque ad 23.1%
  • Dimension 2382×1134×30 mm
  • Cellula Number 132

  • Ad 23.1% moduli efficientiam pro altiori industria densitatis

  • Provectus HPDC N-type TOPCon cell technology

  • Altus bifaciality qua etiam tergo potentia quaestum

  • Optume -0.28%/°C temperatus coefficiens ad stabilitatem calidi aeris perficiendam

  • 132 Configuratio dimidia cellae reducens damna electrica et temperatura operans

  • Dual-glas structure ad vetustatem et diuturnitatem vitae auctae

  • XII annos productum warantum et XXX-annus linearis potentia warantum
WERAN 595-625W Large-Forma bifacialis Solaris Panel - OEM Geminus-Glass PV Modulus ad utilitatem, EPC et Projecta Tutus

Additional Value
XXX-Year Power Warranty

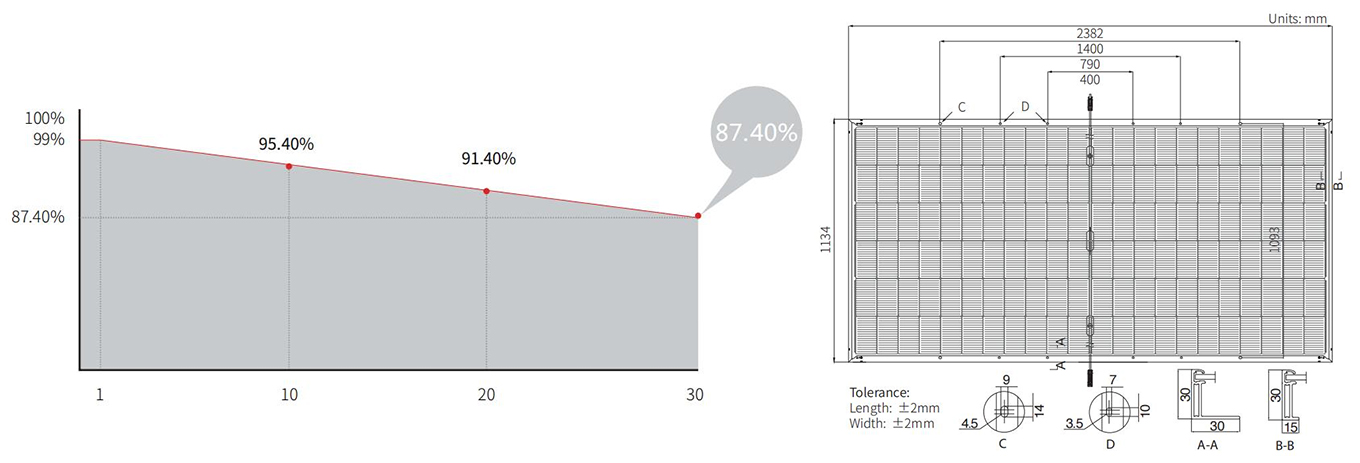

Mechanica Parametri

Cell Orientation 136 (6×22).
Adiunctae Box

IP68, tres diodes

Output cable

4mm², 400, -200mm/±1400mm

Longitudo potest nativus

vitrum Vitrum duale, 2.0 2.0mm vitrum caloris confirmatum
Artus Anodized aluminium offensionis artus
Pondus 32.5kg
Dimension 2382×1134×30mm
Packaging 36pcs per grabatum
144pcs per 20'GP / 720pcs vel 576pcs (solum pro USA) per 40' HC

E lectrical Characteres

STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20°C 1m/s Test dubitatio pro Pmax: ±3%
OMNIBUS Type LR8-66HGD-595M LR8-66HGD-600M LR8-66HGD-605M LR8-66HGD-610M LR8-66HGD-615M LR8-66HGD-620M LR8-66HGD-625M
Temptans Condition STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum imperium (Pmax/W) 595 452.9 600 456.7 605 460.5 610 464.3 615 468.1 620 471.9 625 475.8
Apertum Circuitum Voltage (Voc/V) 47.78 45.41 47.98 45.6 48.18 45.79 48.38 45.98 48.58 46.17 48.78 46.36 48.98 46.55
Brevis Circuit Current (Isc / A) 15.8 12.69 15.85 12.73 15.9 12.77 15.95 12.81 16 12.85 16.05 12.89 16.1 12.93
Maximam vim intentionis ad (Vmp/V) 39.91 37.93 40.11 38.12 40.31 38.31 40.51 38.5 40.71 38.69 40.91 38.88 41.11 39.07
Current apud Maximum Power (Imp/A) 14.91 11.94 14.96 11.98 15.01 12.02 15.06 12.06 15.11 12.1 15.16 12.14 15.21 12.18
OMNIBUS Efficiency(%) 22 22.2 22.4 22.6 22.8 23 23.1

Electricae notae cum diversis posterioribus partis quaestus potentiae (respectu 610W ante)
Pmax /W Voc/V Isc /A Vmp/V Imp/A Pmax quaestum
641 48.38 16.75 40.51 15.81 5%
671 48.38 17.55 40.51 16.57 10%
703 48.48 18.34 40.61 17.32 15%
734 48.48 19.14 40.61 18.07 20%
764 48.48 19.94 40.61 18.82 25%

Operating Morbi
Temperature operational -40℃ ~ 85℃
Virtus output tolerantia 0~3%
Maxime Ratio intentione DC1500V (IEC/UL)
Maximum Series Fuse Rating 35A
Nominal Operating Cell Temperature 45±2℃
Praesidium Classis Classis II
Bifaciality 80±5%
Ignis Rating UL genus 29
IEC Class C

Mechanica Loading
Ante latus Maximum Static Loading 5400Pa
Post maximum Static Loading 2400Pa
Grando Test 25mm Hailstone ad celeritatem 23m / s *

Temperature Ratings (STC)
Temperature Coefficiens of Isc 0.041%/°C
Temperatura Coefficiens Vocis -0.230%/°C
Temperature Coefficiens Pmax -0.280%/°C
