Home / Products / Solaris Panel / Hi-MO 7 / LONGi Himo X10 Bifacial 640-670w LR7-72HVD Solar Panel

LONGi Himo X10 Bifacial 640-670w LR7-72HVD Solar Panel

  • Bifacial, BC, N-type
  • 24.8%
  • 640-670Wp
  • 32.5 kg

Provectus N-TaiRay laganum HPBC 2.0 0BB technology

Superiore potentia output cum anti-obumbrationis facultatem

Nulla gridlines frontalis melioribus aestheticis et missione integrationis

Tutius consilio minus locales overheating et inferiores parvarum crack periculo

Pete Quotationem

PRIOR: Nullum productum prius
PROXIMUS: Nullum productum proximum
  • Technology Bifacial, BC, N-type
  • Potestas Range 640-670Wp
  • Pondus 32.5 kg
  • Product Warranty 15 Years

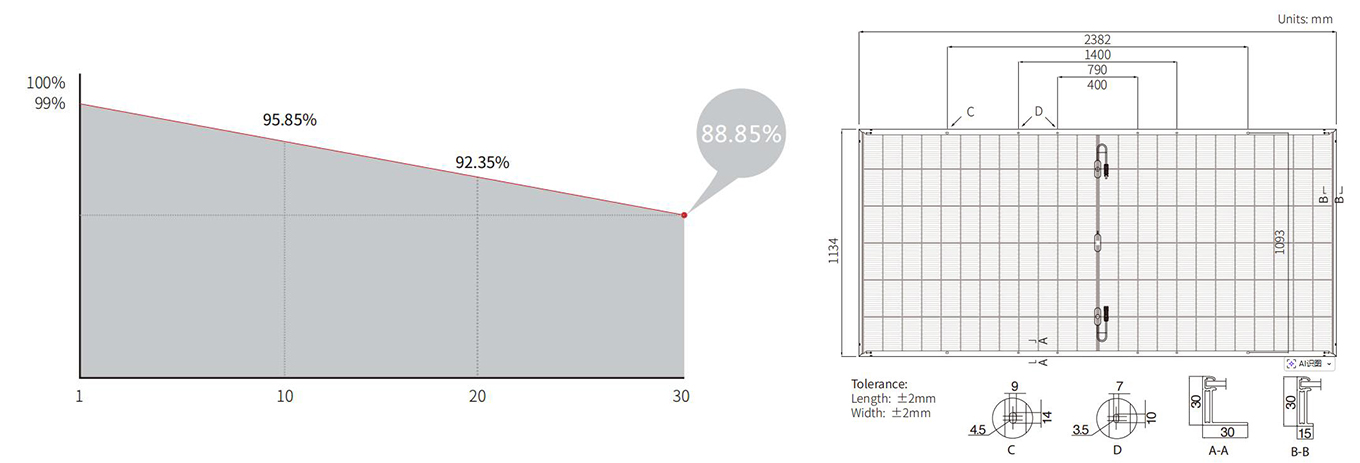

  • Potestas Warranty 1 Annus 99 %, 30 Annus 88,85 %
  • Panel Efficiency 24.8%
  • Dimension 2382×1134×30 mm
  • Cellula Number 144

  • HPBC 2.0-contactus cellae technologiae

  • N-TaiRay laganum platform

  • 0BB busbar-liberum design

  • A facultatem anti-obumbrationis

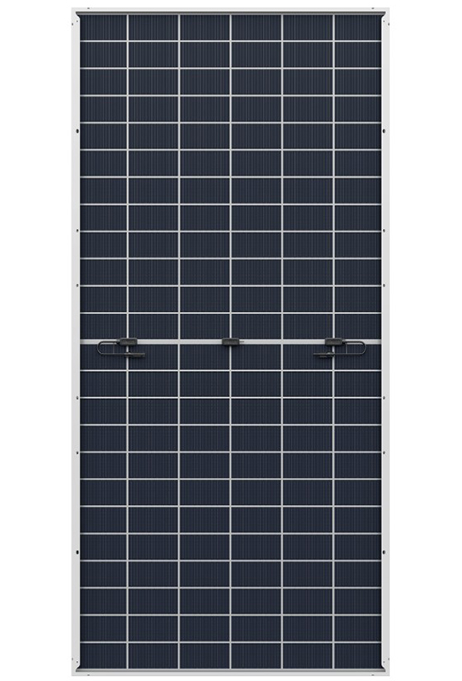

LONGi Himo X10 Bifacial 640-670w LR7-72HVD Solar Panel

Additional Value
XXX-Year Power Warranty

Mechanica Parametri

Cell Orientation 144 (6-24)
Adiunctae Box IP68, tres diodes
Output cable

4mm², ±1200mm

Longitudo potest nativus

vitrum Dualglass, 2.0 2.0mm vitrum semi temperatum
Artus Anodized aluminium offensionis artus
Pondus 33.5kg
Dimension 2382×1134×30mm
Packaging 36pcs per grabatum
144pcs per 20'GP / 720pcs per 40'HC

E lectrical Characteres
STC: AM1.5 1000W/m² 25°C NOCT: AM1.5 800W/m² 20°C 1m/s Test dubitatio pro Pmax: ±3%

OMNIBUS Type LR7-72HVD-640M LR7-72HVD-645M LR7-72HVD-650M LR7-72HVD-655M LR7-72HVD-660M LR7-72HVD-665M
Temptans Condition STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Maximum imperium (Pmax/W) 640 487 645 491 650 495 655 499 660 502 665 506
Apertum Circuitum Voltage (Voc/V) 54.02 51.34 54.12 51.43 54.22 51.53 54.32 51.62 54.42 51.72 54.52 51.81
Brevis Circuit Current (Isc / A) 14.98 12.03 15.06 12.1 15.14 12.16 15.22 12.22 15.3 12.29 15.35 12.33
Maximam vim intentionis ad (Vmp/V) 44.67 42.45 44.77 42.55 44.87 42.64 44.97 42.74 45.07 42.83 45.17 42.93
Current apud Maximum Power (Imp/A) 14.33 11.49 14.41 11.55 14.49 11.61 14.57 11.68 14.65 11.75 14.72 11.8
OMNIBUS Efficiency(%) 23.7 23.9 24.1 24.2 24.4 24.6

Electricae notae cum diversis posterioribus partibus quaestum virtutis (accipiens 665W sicut baseline)
Pmax /W Voc/V Isc /A Vmp/V Imp/A Pmax quaestum
688 54.32 15.98 44.97 15.3 5%
721 54.32 16.74 44.97 16.03 10%
755 54.42 17.5 45.07 16.76 15%
788 54.42 18.26 45.07 17.48 20%
821 54.42 19.03 45.07 18.21 25%

Operating Morbi
Temperature operational -40℃ ~ 85℃
Virtus output tolerantia 0~3%
Maxime Ratio intentione DC1500V (IEC/UL)
Maximum Series Fuse Rating 30A
Nominal Operating Cell Temperature 45±2℃
Praesidium Classis Classis II
Bifaciality 70±5%
Ignis Rating UL Type 29
IEC Class C

Mechanica Loading
Ante latus Maximum Static Loading 5400Pa
Post maximum Static Loading 2400Pa
Grando Test 25mm Hailstone ad celeritatem 23m / s *

Temperature Ratings (STC)
Temperature Coefficiens of Isc 0.005%/°C
Temperatura Coefficiens Vocis -0.200%/°C
Temperature Coefficiens Pmax -0.260%/°C
